The high temperature universal cable

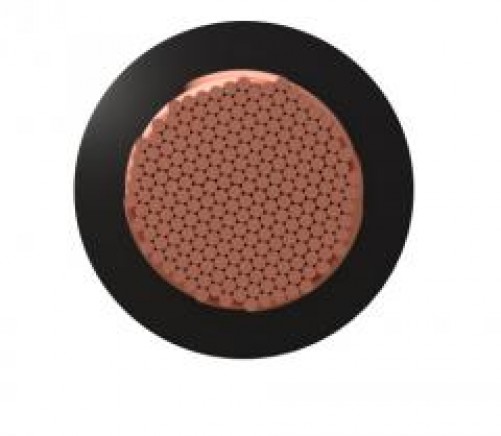

Description Specification The TopFlex MS TRI-RATED cable has been designed for the internal wiring of electrical cabinets, switch boards and small electrical devices. Due to the characteristics of this electric cable, it can be used in conduits or in flexible motor ducts, transformers and other machinery in general. Design Conductor: Electrolytic copper, class 5 (flexible), based on EN60228 and BS 6360 Insulation: Flexible PVC, high service temperature type TI3 according to UNE 21031/HD 21 and Class 43 UL 1581. The special material used for isolation provides extra sliding properties to the cable.   Packaging: Small cross sections (from 0,75 mm2 to 6 mm2) are supplied in high resistant boxes (see table below). Medium cross sections (from 10 mm2 to 35 mm2) are supplied in 100 m sealed coils. Cross-sections > 35 mm2 are supplied in drums. BOX COLOUR GUIDE STYLE     SECTION         PACKAGING 1015        0,75-6 mm2         High resistant boxes 1028         10 mm2              Sealed coils 1283         16-35 mm2         Sealed coils 1284          >50 mm2           Drums
